Case Study
State Grid Distribution Network Control Center
View the State Grid Distribution Network Control Center photograph, with angled console rows, perforated cabinet panels and blue-edged dividers.
Distribution network control center overview
State Grid Distribution Network Control Center belongs to Wubang’s Utilities & Energy case collection.
Photograph: angled console rows

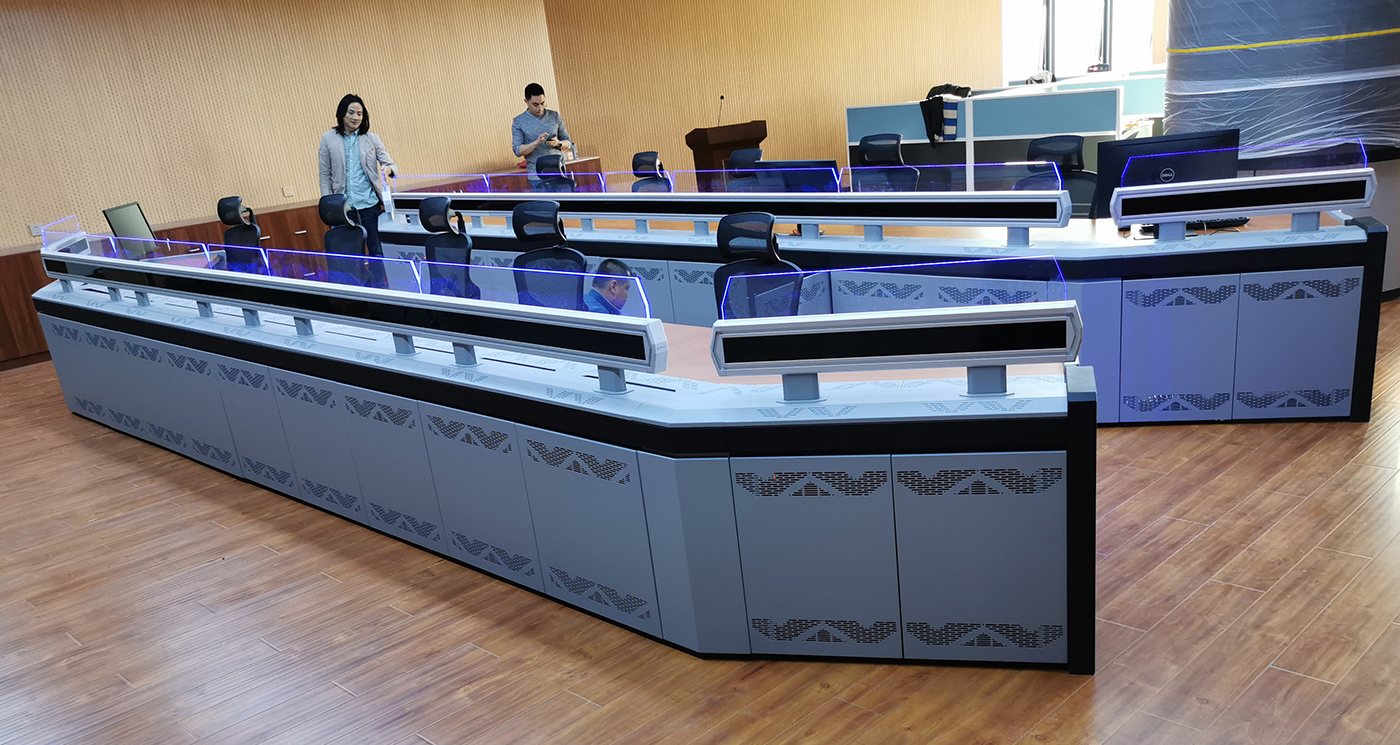

The project photograph shows grey console rows with angled ends, light-coloured worktops and perforated cabinet panels. Dark horizontal bands run below the worktops. Transparent panels with blue-coloured edges and raised black horizontal housings sit above the rows. Black chairs and several monitors are also visible within the arrangement.
Considerations for a similar network-control room
Where a proposed room uses angled console rows, compare the intended screen positions with the shape of each worktop and the space between rows. Discuss which cabinets would need routine equipment access, and map proposed cable routes before settling their positions. An annotated floor plan and expected monitor arrangement can make those choices clearer when you discuss your network-control workspace with Wubang.
